Description
Please note: This unit does not come with nozzles, they will need to be ordered separately.

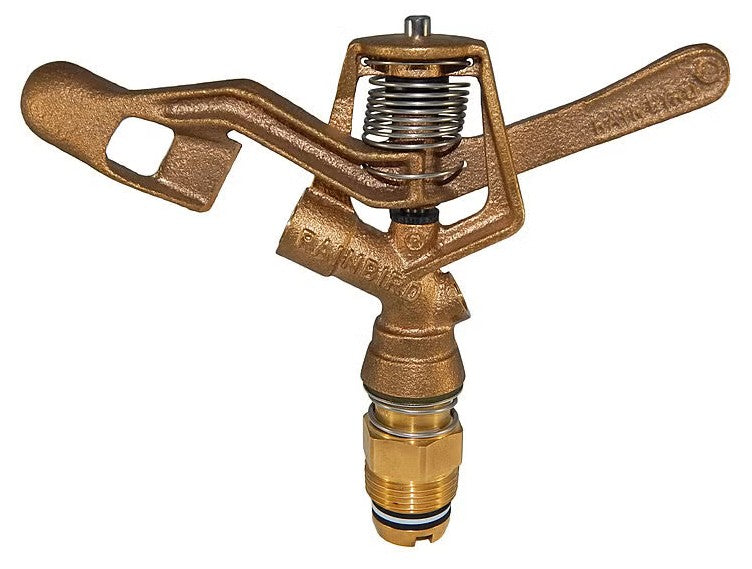

30H / 30WH
3/4" (19 mm) Full Circle, Brass Impact Sprinkler
Designed for general field use on hand lines, solid set, permanent set, or mechanically moved systems. May be used with plastic non-clog vanes for better range and wind resistance.
Features
- 3/4" (19mm) male NPT brass inlet bearing
- Full circle operation
- Dual nozzle port for in-close and distance irrigation
- Heavy duty brass construction
- Stainless steel springs and fulcrum pin
- Brass bearing sleeve
- Back by five-year Customer Satisfaction Policy
- For use with Rain Bird SBN-3 Straight Bore Nozzle or SBN-3-V Straight Bore Nozzle with Vane; Spreader nozzle port uses Rain Bird LAN-1-7, LAN-1-20, or brass plug; all nozzles sold separately
- H Model ships without nozzle and without spreader nozzle, WH Model ships without nozzle with spreader nozzle plugged
Specs
- Bearing: 3/4" Male NPT, Brass
- Trajectory Angle: 27 degrees
- Operating Range: 25-80 psi (1.7-5.5 bar)
- Flow Rate: 2.9-13.1 gpm (0.51-1.47 m3/h)
- Radius: 40-56 ft. (12.2-17.2 m)
- Nozzle Port: 1/4" Female NPT
- Spreader Nozzle Port: 1/8" Female NPT

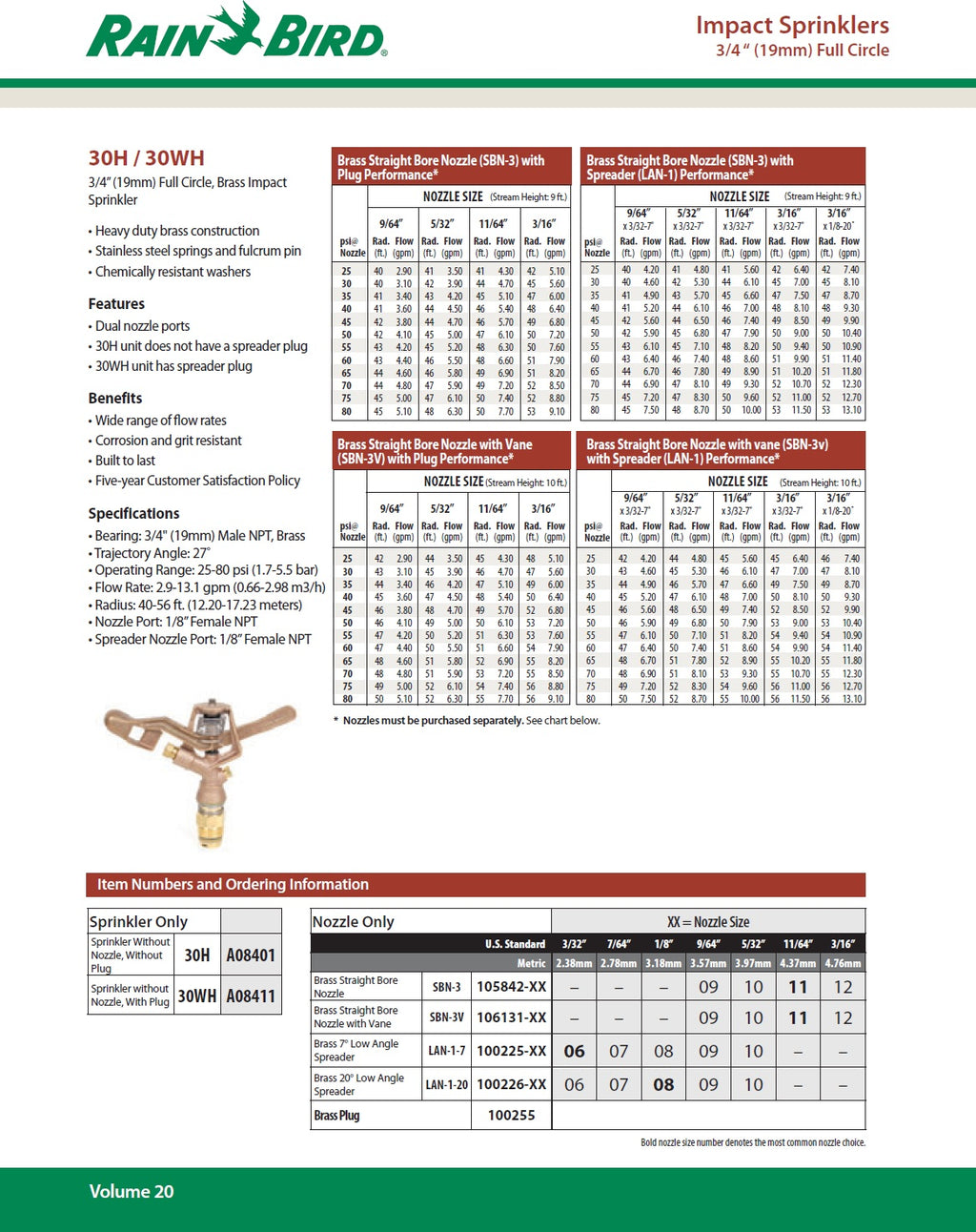

Rainbird specifications page: https://www.rainbird.com/products/30h-30wh
